Utility Solutions - 45' Telescoping Hot Stick, BLUE STRIPE®, USTS-045

Utility Solutions USTS-045 45' BLUE STRIPE® Telescoping Hot Stick

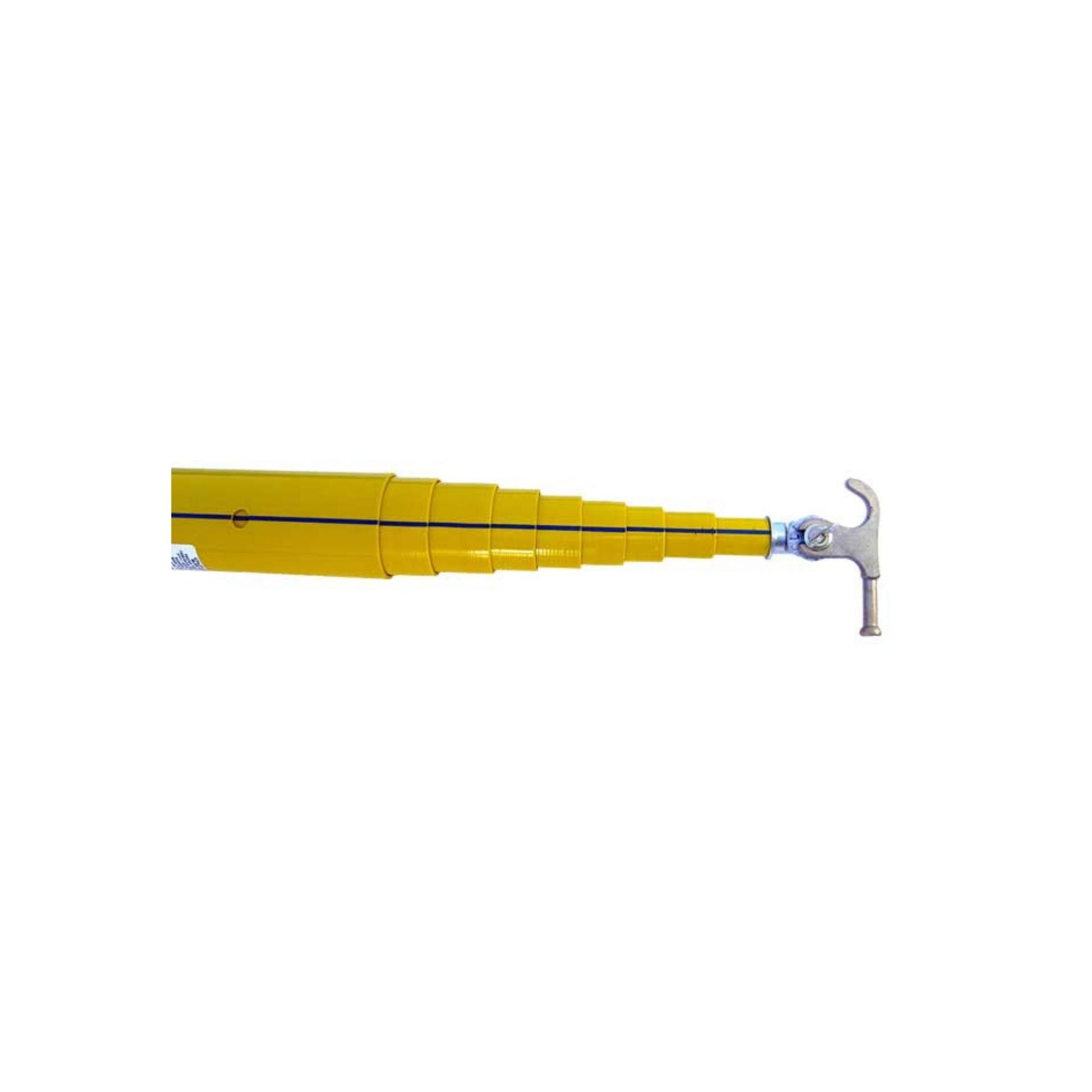

The Utility Solutions USTS-045 is a 45-foot BLUE STRIPE® fiberglass telescoping hot stick engineered for live-line overhead utility work. Constructed with epoxy resin — the superior choice for hot stick manufacturing — it delivers excellent dielectric properties, superior resistance to water absorption, and is easier to clean and repair than alternative materials. The Easy Tip Lock Replacement feature allows button replacement without sacrificing the foam-filled tip section, extending tool life and reducing replacement costs. The BLUE STRIPE® alignment feature helps locate the CNC machined buttons for fast, accurate assembly in the field. Collapses to 66" for transport and storage.

Key Features

• Epoxy resin fiberglass construction — superior dielectric properties, excellent water absorption resistance, easier to clean and repair

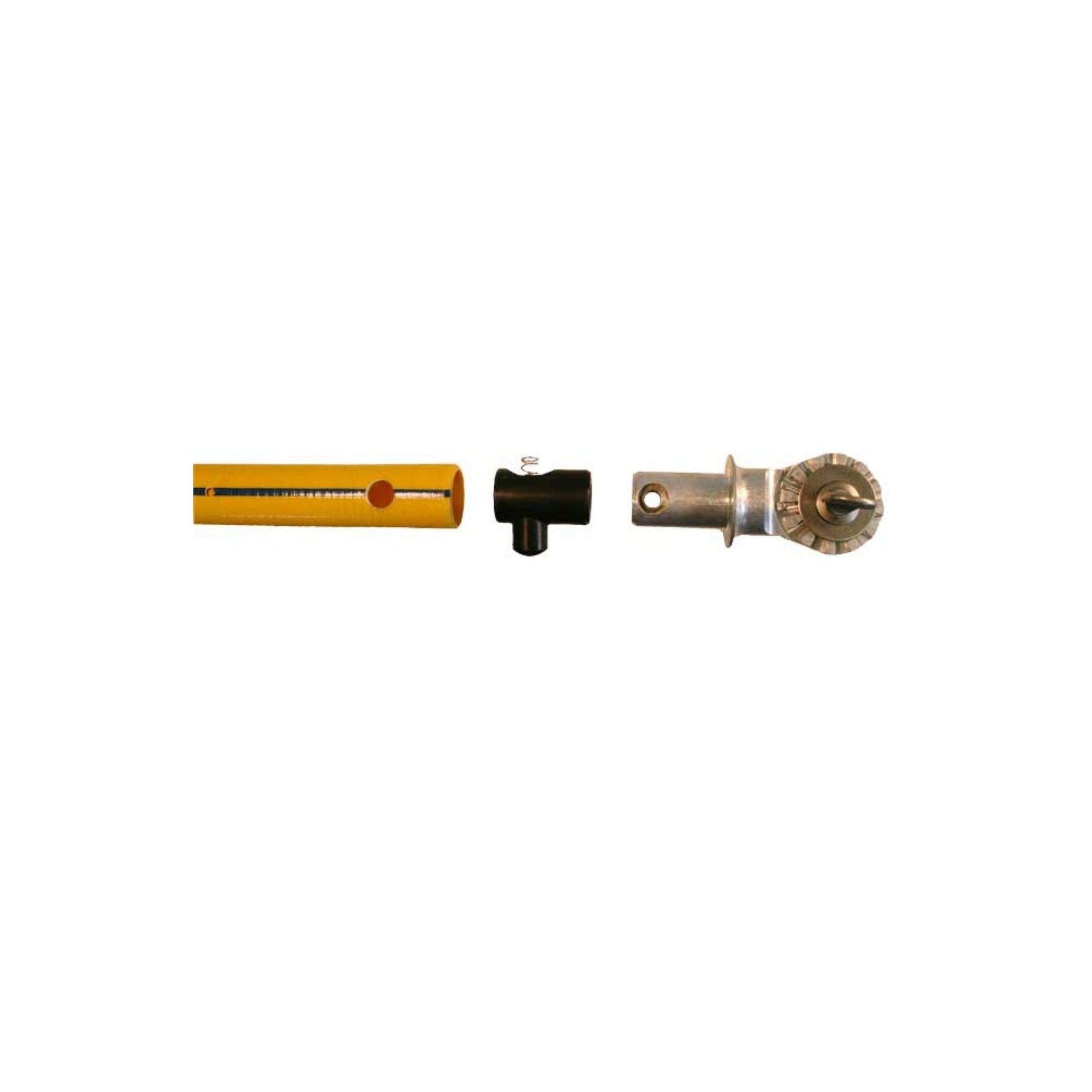

• Easy Tip Lock Replacement — button replacement without sacrificing the foam-filled tip section for extended tool life
• BLUE STRIPE® alignment feature helps locate CNC machined buttons for fast, accurate field assembly
• 10-section telescoping design with 5 usable lengths: 45’, 40’, 35’, 30’, and 26’
• Collapses to 66" closed length for convenient transport and storage
• Compatible with USSB-006 bag/case for protected transport

Specifications

• Part Number: USTS-045
• Type: BLUE STRIPE® fiberglass telescoping hot stick
• Maximum Length: 45 ft (13.7 m)
• Closed Length: 66"
• Base Diameter: 3-1/8"
• Number of Sections: 10
• Weight: 16 lb 8 oz
• Available Lengths: 45’, 40’, 35’, 30’, 26’
• Compatible Bag/Case: USSB-006
• Material: Epoxy resin fiberglass
• Application: Live-line overhead utility work — hot stick operations
• Vendor: Utility Solutions

Ideal Applications

• Live-line overhead utility work requiring a 45-foot telescoping hot stick with excellent dielectric properties and water absorption resistance
• Field operations requiring multiple usable lengths (26’–45’) from a single 10-section telescoping hot stick that collapses to 66" for transport
• Any overhead lineman application requiring a BLUE STRIPE® epoxy resin fiberglass hot stick with Easy Tip Lock Replacement for extended tool life

Part Number: USTS-045 | Vendor: Utility Solutions | Max Length: 45 ft (13.7 m) | Closed: 66" | Sections: 10 | Weight: 16 lb 8 oz | Lengths: 45’, 40’, 35’, 30’, 26’
