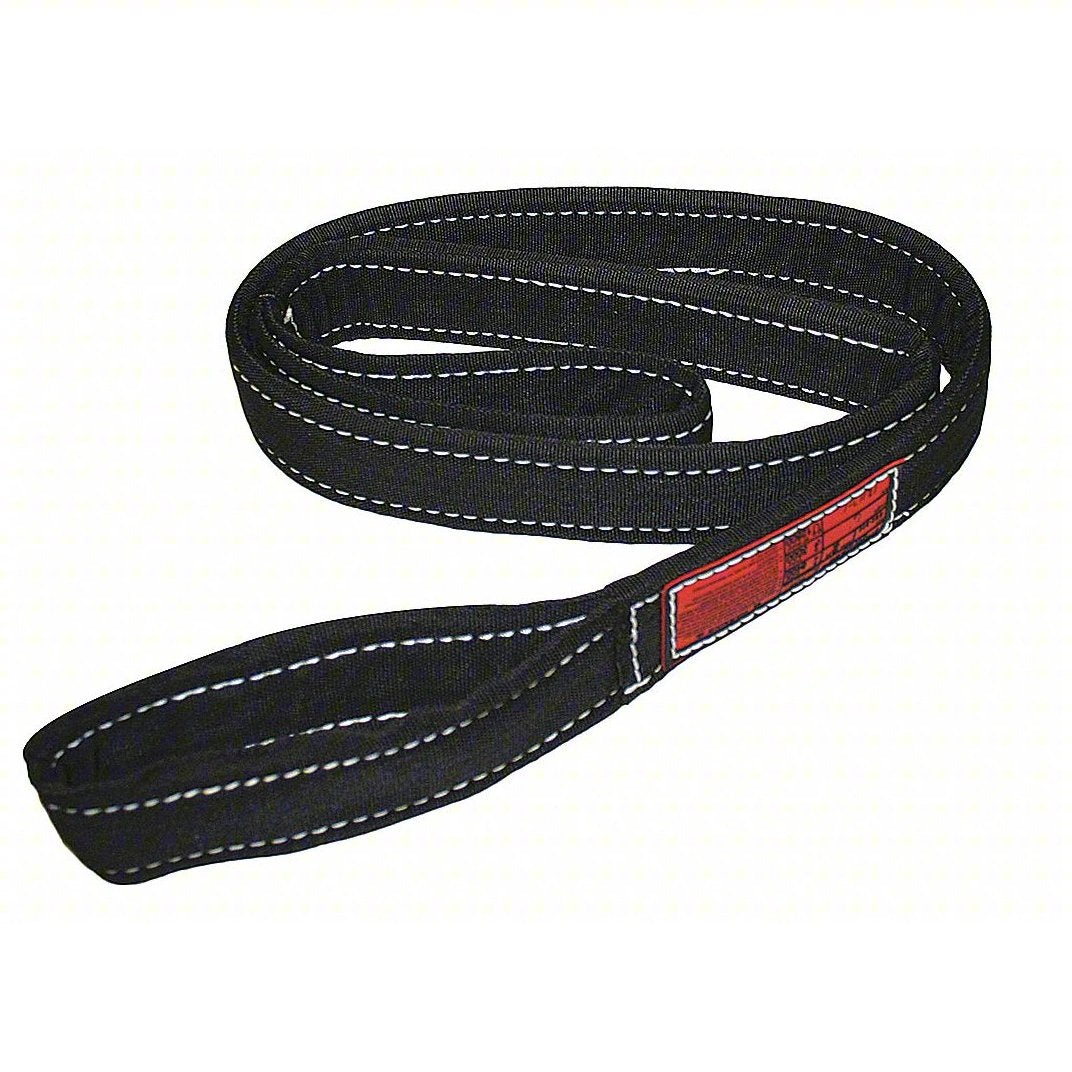

STREN-FLEX - Web Sling: Type 3, Nylon, 8 in Eye, 2 Plies - AVAILABLE IN 4 ft & 6 ft

Stren-Flex Type 3 Nylon Web Sling — 2-Ply, 8" Flat Eyes | Available in 4 ft & 6 ft

The Stren-Flex Type 3 nylon web sling is a USA-manufactured, ASME B30.9-compliant lifting sling engineered for reliable performance in utility, industrial, and construction rigging applications. Available in two lengths — 4 ft and 6 ft — to match your specific rigging requirements.

Load Ratings

• Vertical hitch: 3,200 lbs
• Choker hitch: 2,500 lbs
• Basket hitch: 6,400 lbs

Key Features

• Type 3 flat eye design (eye & eye) supports vertical, choker, and basket hitch configurations
• 2-ply nylon construction with acrylic coating and abrasion-resistant cover for extended service life
• Extra material at body, eyes, and edges for protection against cuts and abrasion damage
• Chemical, oil, and stretch resistant — nylon absorbs shock loads during lifts
• Fully sewn encapsulated tags with wear-resistant construction
• Operating temperature range: -40°F to 194°F
• Meets ASME B30.9 and OSHA 1910.184 standards
• Made in USA

Available Sizes

• 4 ft — SKU: EEF-2-901CW-04
• 6 ft — SKU: EEF-2-901CW-06

Specifications

• Type: 3 (Flat Eye & Flat Eye)
• Material: Nylon
• Eye Length: 8 in
• Plies: 2
• Coating: Acrylic with abrasion-resistant cover
• Temp Range: -40°F to 194°F
• Standards: ASME B30.9, OSHA 1910.184

Note: Nylon is susceptible to moisture absorption, which can add weight and affect electrical conductivity. Inspect before each use.

Ideal Applications

• Utility and lineman rigging operations
• Industrial lifting and material handling
• Construction and infrastructure projects
• Any application requiring ASME-compliant nylon web slings

Vendor: Stren-Flex | Made in USA
