Speed Systems - Semi-Con Adjustable-Depth Scoring Tool, 2 Options 1/2"-2" & 1.75"-3"

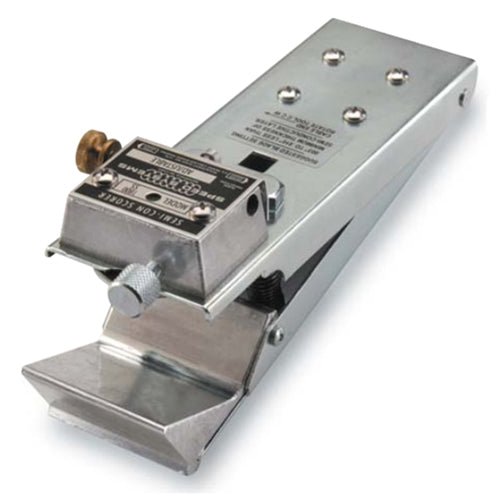

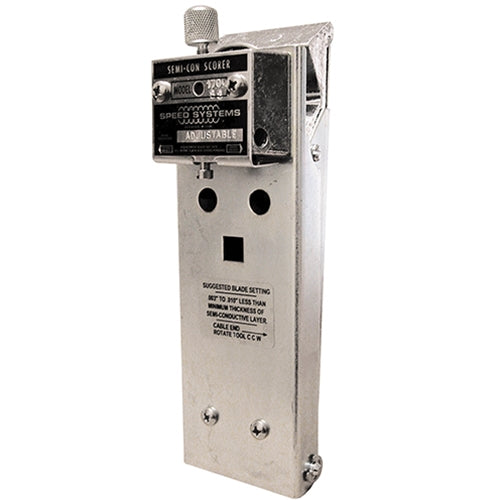

Speed Systems Semi-Con Adjustable-Depth Scoring Tool — 1700SS & 1800SS

The Speed Systems Semi-Con Scorer delivers precision control for high-voltage cable preparation during termination and splicing. With adjustable blade depth from .001" to .100", these tools score the semi-conductive shield cleanly and consistently — without nicking or damaging the underlying cable insulation — protecting cable integrity and ensuring reliable, code-compliant installations.

Available in two models to cover a wide range of cable diameters:

Available Sizes

• 1700SS — 1/2" to 2" cable OD — ideal for smaller distribution and feeder cables
• 1800SS — 1.75" to 3" cable OD — designed for larger transmission and high-capacity cables

Key Features

• Adjustable blade depth: .001" to .100" for precise, repeatable scoring without insulation damage
• Square and spiral cutting options for versatile semi-con removal techniques
• Spring-loaded constant pressure maintains consistent blade contact throughout the cut
• Dial locking set screws lock depth setting securely during operation
• Each tool ships with instructional CD and video for proper setup and use
• Replacement blades (Part No. 1678) available separately for extended tool life

Specifications

• 1700SS — Cable OD: 1/2" – 2"
• 1800SS — Cable OD: 1.75" – 3"
• Blade Depth Adjustment: .001" – .100"
• Cut Styles: Square and spiral
• Pressure: Spring-loaded constant
• Replacement Blade: 1678

Ideal Applications

• High-voltage cable termination and splicing prep
• Semi-conductive shield removal on distribution and transmission cables
• Utility underground cable installation and maintenance
• Industrial electrical cable preparation requiring precise depth control

Vendor: Speed Systems | Replacement Blade: 1678
