Speed Systems - Insulation Stripper Tool With Wedge Blade Installed & Spare Straight Blade 1542-2CL

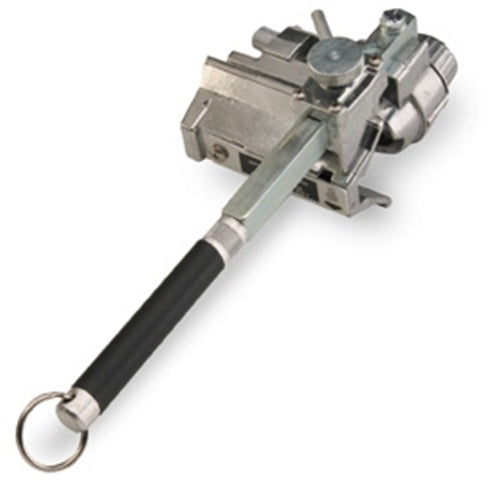

Speed Systems 1542-2CL Insulation Stripper — Wedge & Straight Blade, 1/2" to 1-3/4" OD

The Speed Systems 1542-2CL is a professional high-voltage cable insulation stripper engineered for fast, precise stripping of PE, XLPE, and EPR insulations on cables from 1/2" to 1-3/4" outside diameter. Adjustable blade depth and angle enable accurate spiral-cutting around the conductor without bushings — delivering faster prep times, enhanced safety, and improved installation reliability.

What's Included

• Wedge blade (installed) — optimized for XLPE insulation
• Spare straight blade — for EPR cable work
• Tool stop guide — for accurate cut-back measurement

Key Features

• Adjustable blade depth and angle for precise spiral-cutting without bushings
• Compatible with PE, XLPE, and EPR insulations
• Cable OD range: 1/2" to 1-3/4"
• Faster stripping with enhanced safety and installation reliability vs. conventional methods
• Replacement blades available: 1581 (EPR) and 1562 (XLPE)

Voltage & Cable Size Ratings

• 5kV: 1,000 MCM and smaller
• 15kV: 750 MCM and smaller
• 25kV: 350 MCM and smaller
• For larger diameter cables, refer to Mark I, Mark II, or Mark III tools

Specifications

• Part Number: 1542-2CL
• Cable OD Range: 1/2" – 1-3/4"
• Compatible Insulations: PE, XLPE, EPR
• Blade Style: Wedge (XLPE) + Straight (EPR)
• Replacement Blades: 1581 (EPR), 1562 (XLPE)

Ideal Applications

• High-voltage cable termination and splicing prep
• Utility and lineman underground cable work
• 5kV, 15kV, and 25kV distribution cable installation
• Industrial electrical cable preparation

Part Number: 1542-2CL | Vendor: Speed Systems
