Slingco - 4K Strap Hoist, ZLH14335

Slingco - 4K Strap Hoist, ZLH14335

Sign in to see pricing
Fast Shipping
Secure Checkout

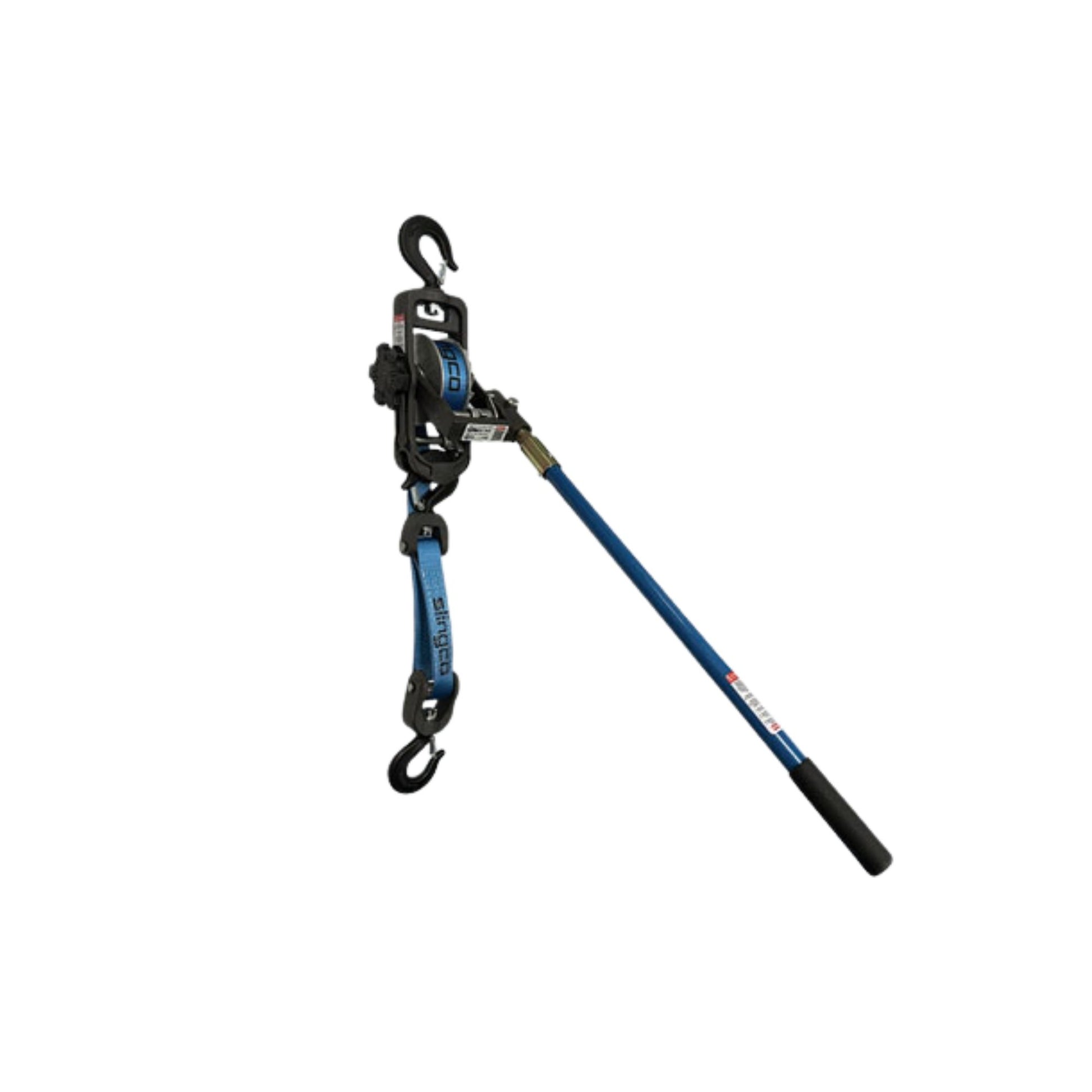

Slingco ZLH14335 4K Strap Hoist

The Slingco ZLH14335 4K Strap Hoist delivers reliable lifting and pulling performance for utility linemen and rigging professionals requiring a rated, ASME B30.21-compliant strap hoist for overhead and field operations. Tested to 125% of working load limit for safety you can trust. The hi-viz blue strap ensures easy identification on busy job sites, and the interlocking pawl lever system provides secure, controlled operation across three positions. Available in standard and hot stick operable versions to match your operational requirements. Replacement parts are readily available to minimize downtime.

Key Features

  • 4,000 lb capacity in double line mode / 2,000 lb in single line mode for versatile lifting and pulling configurations
  • ASME B30.21 compliant — tested to 125% of working load limit for rated safety performance
  • Interlocking pawl lever system with three operating positions: lift/pull, lower/release, and freewheeling
  • Hi-viz blue strap for easy identification on busy job sites
  • Pressure die cast drum with professional finish that resists strap fraying for extended equipment life
  • Available in standard and hot stick operable versions to match operational requirements
  • Replacement parts readily available for minimal downtime and long-term serviceability

Specifications

  • Part Number: ZLH14335
  • Type: Strap hoist
  • Capacity (Double Line): 4,000 lbs (4K)
  • Capacity (Single Line): 2,000 lbs (2K)
  • Standard: ASME B30.21
  • Testing: 125% of working load limit
  • Lever System: Interlocking pawl — 3 positions (lift/pull, lower/release, freewheeling)
  • Strap Color: Hi-viz blue
  • Drum: Pressure die cast (anti-fray finish)
  • Versions: Standard and hot stick operable
  • Application: Overhead utility lifting, pulling, and rigging operations
  • Vendor: Slingco

Ideal Applications

  • Overhead line lifting and pulling operations requiring a 4K rated ASME B30.21-compliant strap hoist
  • Utility rigging applications requiring a hot stick operable strap hoist for energized environment use
  • Any utility lineman or rigging application requiring a hi-viz, rated strap hoist with freewheeling capability

Part Number: ZLH14335 | Vendor: Slingco | Capacity: 4K double line / 2K single line | Standard: ASME B30.21 | Testing: 125% WLL
