Ripley Tools - WS5A Adjustable Cable End Stripper 37415

Ripley Tools 37415 WS5A Adjustable Cable End Stripper — Primary URD, 600V–35kV

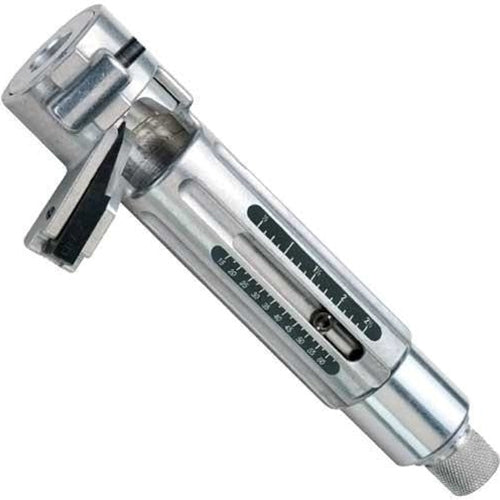

The Ripley Tools WS5A (37415) is a precision adjustable cable end stripper engineered for primary URD cable applications from 600V to 35kV. With a guarded cutting blade, adjustable strip stop with scale, and semi-con shaving capability, the WS5A delivers accurate, repeatable insulation removal on XLPE, polyethylene, and EPR cables — safely and efficiently.

Key Features

• Guarded cutting blade for safe operation without knife hazards
• Adjustable strip stop mechanism with scale for precise, repeatable strip lengths from 0.625" to 2.5"
• Semi-con shaving capability for complete cable prep in one tool
• Strips XLPE, polyethylene, and EPR insulations up to 400 mils thick
• Cable OD range: 0.26" to 1.335" with included bushings for various insulation diameters
• Compatible with SW 2 Series Ratchet Wrench for increased leverage on tough insulations
• Manual wrench-driven operation for controlled, consistent cuts
• Replacement blade available: Part No. 10324

Specifications

• Part Number: 37415
• Model: WS5A
• Cable OD Range: 0.26" – 1.335"
• Insulation Thickness: Up to 400 mils
• Strip Length Range: 0.625" – 2.5"
• Compatible Insulations: XLPE, polyethylene, EPR
• Voltage Range: 600V – 35kV
• Tool Length: 8"
• Weight: 1 lb
• Replacement Blade: 10324
• Optional Accessory: SW 2 Series Ratchet Wrench

Ideal Applications

• Primary URD cable end stripping for 600V–35kV systems
• XLPE, PE, and EPR insulation removal for terminations and splices
• Semi-conductive shield shaving during cable prep
• Utility underground cable installation and maintenance
• Industrial electrical cable preparation requiring adjustable strip depth and length

Part Number: 37415 | Model: WS5A | Vendor: Ripley Tools | Replacement Blade: 10324
