Ripley Tools - SCS Adjustable Cable Semi-Con Scoring Tool (inch) 43630

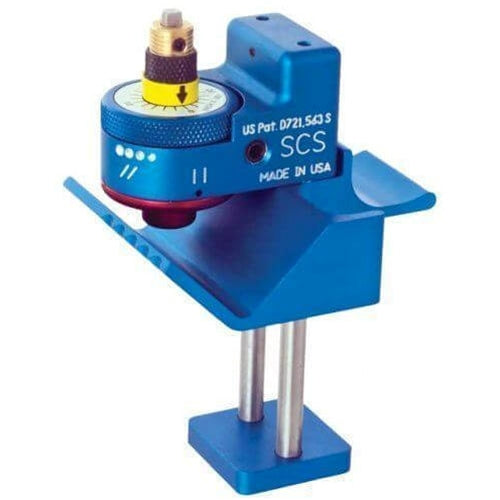

Ripley Tools 43630 SCS Adjustable Cable Semi-Con Scoring Tool — 5–35kV, 0.31"–2.0" OD

The Ripley Tools SCS (43630) is a precision semi-con scoring tool engineered for medium voltage cable preparation from 5kV to 35kV. With adjustable blade depth from 0" to 0.16" and support for longitudinal, spiral, and calibrated square cuts, the SCS delivers accurate, repeatable semi-conductive shield scoring without insulation damage across a wide range of cable diameters. Made in USA. Patent No. D721,563.

Key Features

• Adjustable blade depth: 0" to 0.16" for precise, controlled semi-con scoring without insulation damage
• Cable OD range: 0.31" to 2.0" — handles 5kV through 35kV medium voltage cables
• Performs longitudinal, spiral, and calibrated square cuts for versatile semi-con removal
• Compact 2" envelope design accommodates larger cable work in tight spaces
• Inch scale with 0.002" increments for highly accurate depth setting
• Standard cable guide included for consistent, repeatable cuts
• Easy blade replacement with included guide; replacement blade Part No. 43645
• Made in USA | Patent No. D721,563

Specifications

• Part Number: 43630
• Model: SCS (inch scale)
• Cable OD Range: 0.31" – 2.0"
• Blade Depth Adjustment: 0" – 0.16"
• Scale: Inch, 0.002" increments
• Cut Types: Longitudinal, spiral, calibrated square
• Voltage Range: 5kV – 35kV
• Tool Envelope: 2"
• Replacement Blade: 43645
• Patent: D721,563
• Origin: Made in USA

Ideal Applications

• Semi-conductive shield scoring on 5kV–35kV medium voltage cables
• Cable termination and splice preparation
• Utility underground cable installation and maintenance
• Industrial electrical cable prep requiring precise, adjustable semi-con scoring

Part Number: 43630 | Vendor: Ripley Tools | Replacement Blade: 43645 | Made in USA
