Little Mule - Series 344C Linemans Hoist, 344C

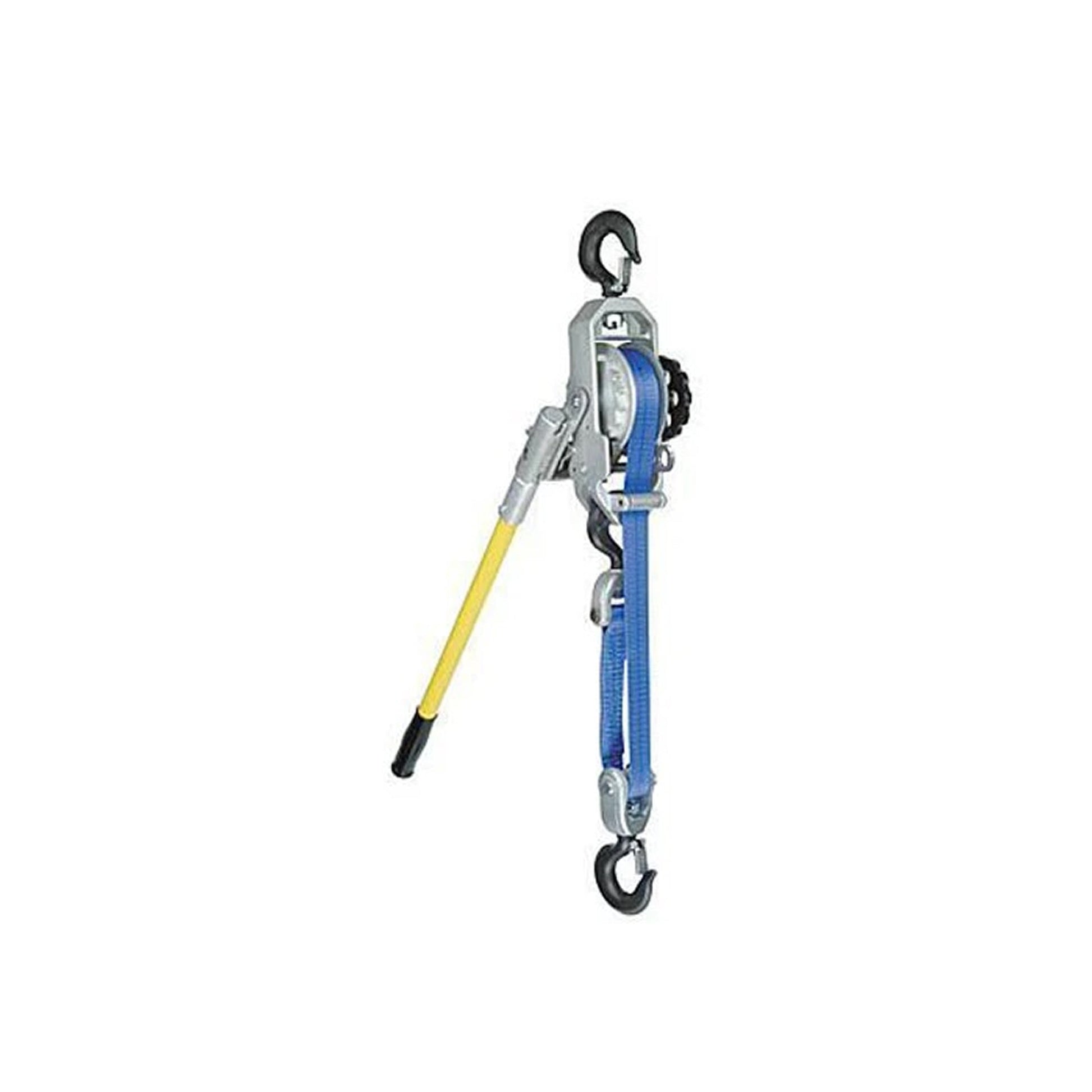

Little Mule 344C Series Lineman’s Hoist — Strap Hoist

The Little Mule Series 344C is a lightweight, rugged strap hoist engineered for controlled lifting, tensioning, and rigging in demanding utility field environments. Built with a compact aluminum alloy frame and double-flanged strap drum, the 344C delivers reliable performance with minimal headroom requirements — ideal for transformer work, overhead line rigging, and tensioning applications where space is limited. Backed by a lifetime warranty and tested at 125% of rated load before leaving the factory.

Key Features

• 2,000 lb single line / 4,000 lb double line capacity for demanding utility lifting and tensioning applications
• 11’ and 5-1/2’ lift heights with 30" lever length for versatile rigging configurations
• Overload protection handle tip bends to warn of hazardous overload conditions before failure
• Double interlocking pawls ensure positive load holding in all conditions
• Enhanced reversing mechanism reduces handle effort for load release and lowering
• 360° swiveling hooks accommodate a wide range of latch options for versatile rigging attachment
• All stainless steel springs and shafts resist corrosion for long-term field durability
• Rotating shafts on bronze bushings for extended service life
• Meets or exceeds ASME/ANSI Standard B-30.21 with 4:1 design factor minimum
• Factory tested at 125% of rated load — every unit
• Lifetime warranty
• 12.5 lbs — lightweight for easy portability in the field

Specifications

• Part Number: 344C
• Series: Little Mule 344C
• Single Line Capacity: 2,000 lbs
• Double Line Capacity: 4,000 lbs
• Lift Heights: 11’ / 5-1/2’
• Lever Length: 30"
• Frame: Aluminum alloy
• Drum: Double-flanged strap drum
• Springs/Shafts: All stainless steel
• Bushings: Bronze
• Standard: ASME/ANSI B-30.21, 4:1 design factor minimum
• Factory Test: 125% of rated load
• Warranty: Lifetime
• Weight: 12.5 lbs
• Vendor: Little Mule

Ideal Applications

• Transformer work and overhead line rigging requiring controlled lifting and tensioning
• Utility lineman rigging, tensioning, and controlled lifting in confined or limited-headroom environments
• Any overhead utility application requiring a rated, ASME/ANSI-compliant lineman’s strap hoist up to 4,000 lbs double line

Part Number: 344C | Vendor: Little Mule | Capacity: 2,000 lb single / 4,000 lb double | Weight: 12.5 lbs | Warranty: Lifetime
