Hastings - 12’ 25KV 2/0 Factory Assembled Jumpers With Large Range Heads - Clear, 6915

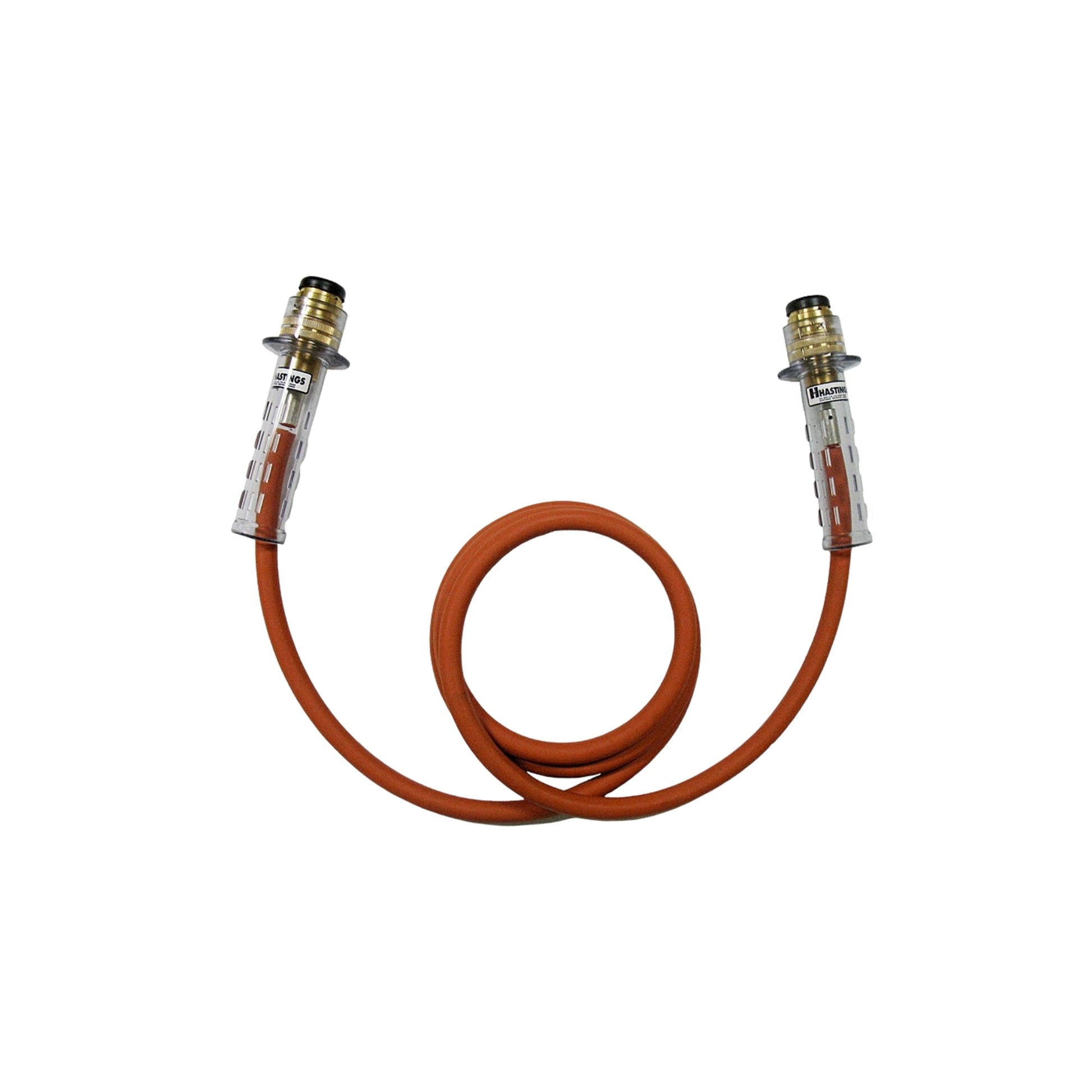

Hastings 6915 Factory-Assembled 25KV Insulated Jumpers — 12 Ft, 2/0 Cable, Large Range Heads, Clear

The Hastings 6915 are factory-assembled 25KV insulated jumpers engineered for high-voltage electrical connections on distribution and underground systems. Clear medium-range heads accommodate cable sizes from 6 Solid (.162") to 556-5MCM or 477 ACSR maximum, while the thrust bearing design minimizes friction for effortless clamp tightening. Bronze clamping rings with serrated contact surfaces ensure secure, reliable connections at every use. Made in USA.

Key Features

• 25KV rated factory-assembled insulated jumpers for high-voltage distribution work
• Clear large-range heads accommodate 6 Solid (.162") to 556-5MCM / 477 ACSR maximum
• Thrust bearing design minimizes friction for effortless clamp tightening
• Bronze clamping rings with serrated contact surfaces for secure, reliable connections
• 400 amp continuous current rating
• EPR insulation — resists abrasion, heat, moisture, and UV exposure; maintains flexibility in low-temperature conditions
• Made in USA

Specifications

• Part Number: 6915
• Voltage Rating: 25KV
• Cable Gauge: 2/0
• Length: 12 ft
• Current Rating: 400 amps continuous
• Head Type: Large range (clear)
• Cable Range: 6 Solid (.162") – 556-5MCM / 477 ACSR max
• Clamping Rings: Bronze with serrated contact surfaces
• Insulation: EPR (abrasion, heat, moisture, UV resistant; low-temp flexible)
• Origin: Made in USA

⚠️ Important Safety Note

Not intended for permanently installed or portable power applications. Position away from grounded surfaces or energized conductors other than those to which connected to prevent cable damage and high leakage currents.

Ideal Applications

• High-voltage distribution line jumper connections up to 25KV
• Underground (UG) transformer work requiring insulated jumpers
• Utility lineman temporary connections on ACSR and copper conductors
• Any application requiring factory-assembled 25KV EPR-insulated jumpers with large-range heads

Part Number: 6915 | Vendor: Hastings | Rating: 25KV / 400A | Made in USA
