Hastings - Fiberglass Isolating Link with Swivel Eye and Safety Hook | 3414

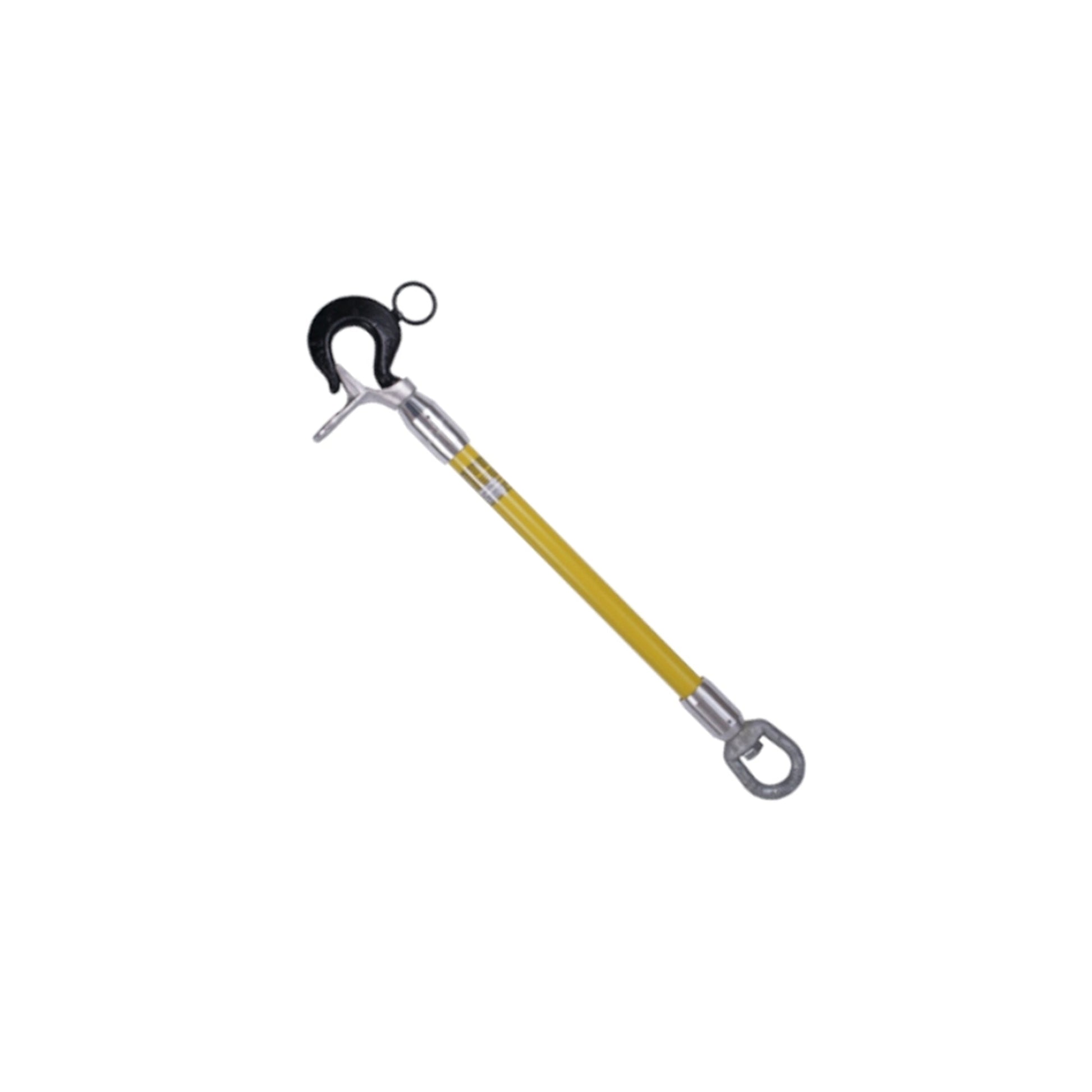

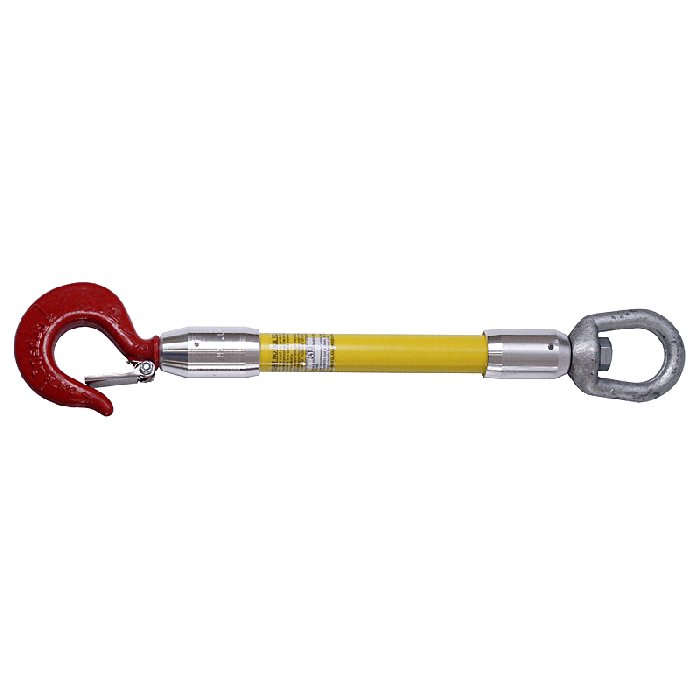

Hastings 3414 Fiberglass Isolating Link with Swivel Eye and Safety Hook

The Hastings 3414 Isolating Link is a fiberglass link designed to provide dielectric isolation when using strap hoists on primary-voltage conductors. When web straps become contaminated through field use, their dielectric properties can be reduced. This isolating link helps maintain electrical separation between the hoist and the energized conductor. It features a standard swivel eye and safety hook for secure rigging attachment.

Key Features

• Dielectric isolation for strap-hoist applications on primary-voltage conductors
• Helps address the reduced dielectric performance of contaminated web straps
• Standard swivel eye and safety hook for secure rigging attachment
• 4,000 lb rated load for overhead line rigging applications
• 1 in. x 12 in. fiberglass body with solid foam core
• Tested to OSHA and ASTM F-711 requirements
• Made in the USA

Specifications

• Part number: 3414
• Rated load: 4,000 lb
• Dimensions: 1 in. x 12 in.
• Construction: Fiberglass with solid foam core
• Hardware: Standard swivel eye and safety hook
• Standards: OSHA and ASTM F-711
• Origin: Made in the USA
• Vendor: Hastings

Ideal Applications

• Dielectric isolation when using strap hoists on energized primary-voltage conductors
• Overhead line construction and maintenance rigging
• Live-line applications requiring a rated fiberglass isolating link with a swivel eye and safety hook

Part number: 3414 | Vendor: Hastings | Rated load: 4,000 lb | Standards: OSHA and ASTM F-711 | Made in the USA
