Hastings - Compact Cluster Bar, 6767

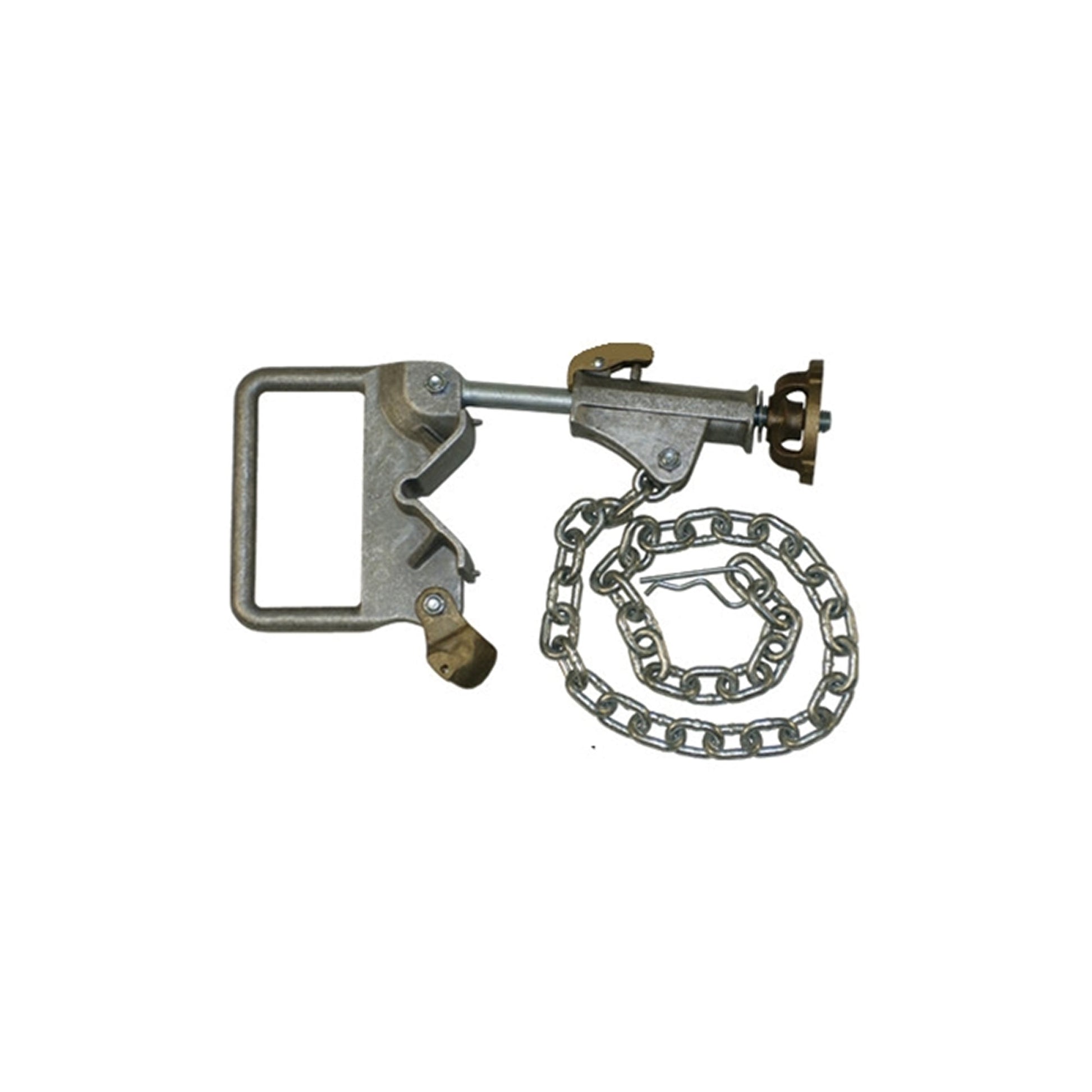

Hastings 6767 Compact Cluster Bar

The Hastings 6767 Compact Cluster Bar provides essential protection for operating personnel during grounding procedures on overhead and substation electrical systems. Constructed from aluminum alloy with a 5/8" diameter design, the 6767 accepts both "C" and duckbill type ground clamps for versatile installation across a range of grounding applications. Tested to withstand 43kA at 15 cycles for reliable performance in demanding fault-current environments. Lightweight at just 6.8 lbs for easy portability and handling in the field. Made in the USA.

Key Features

• 43kA / 15-cycle fault current rating for reliable performance in demanding overhead and substation grounding environments
• Accepts both "C" and duckbill type ground clamps for versatile installation across grounding applications
• 5/8" diameter aluminum alloy construction for strength and lightweight field portability
• Adjustable chain tightener with 36" of chain for secure positioning during grounding procedures
• 6.8 lbs — lightweight for easy handling and transport in the field
• Made in the USA
• Built to Hastings’ professional utility standards for safety-critical grounding applications

Specifications

• Part Number: 6767
• Type: Compact cluster bar
• Construction: Aluminum alloy
• Diameter: 5/8"
• Clamp Compatibility: "C" type and duckbill type ground clamps
• Chain Tightener: Adjustable, 36" chain
• Fault Current Rating: 43kA / 15 cycles
• Weight: 6.8 lbs
• Origin: Made in USA
• Application: Personnel protection during overhead and substation grounding procedures
• Vendor: Hastings

Ideal Applications

• Personnel protection during grounding procedures on overhead distribution and transmission lines
• Substation grounding operations requiring a compact, rated cluster bar compatible with "C" and duckbill clamps
• Any utility lineman or substation application requiring a 43kA-rated aluminum cluster bar for safety-critical grounding

Part Number: 6767 | Vendor: Hastings | Rating: 43kA / 15 cycles | Clamps: "C" & Duckbill | Weight: 6.8 lbs | Origin: Made in USA
