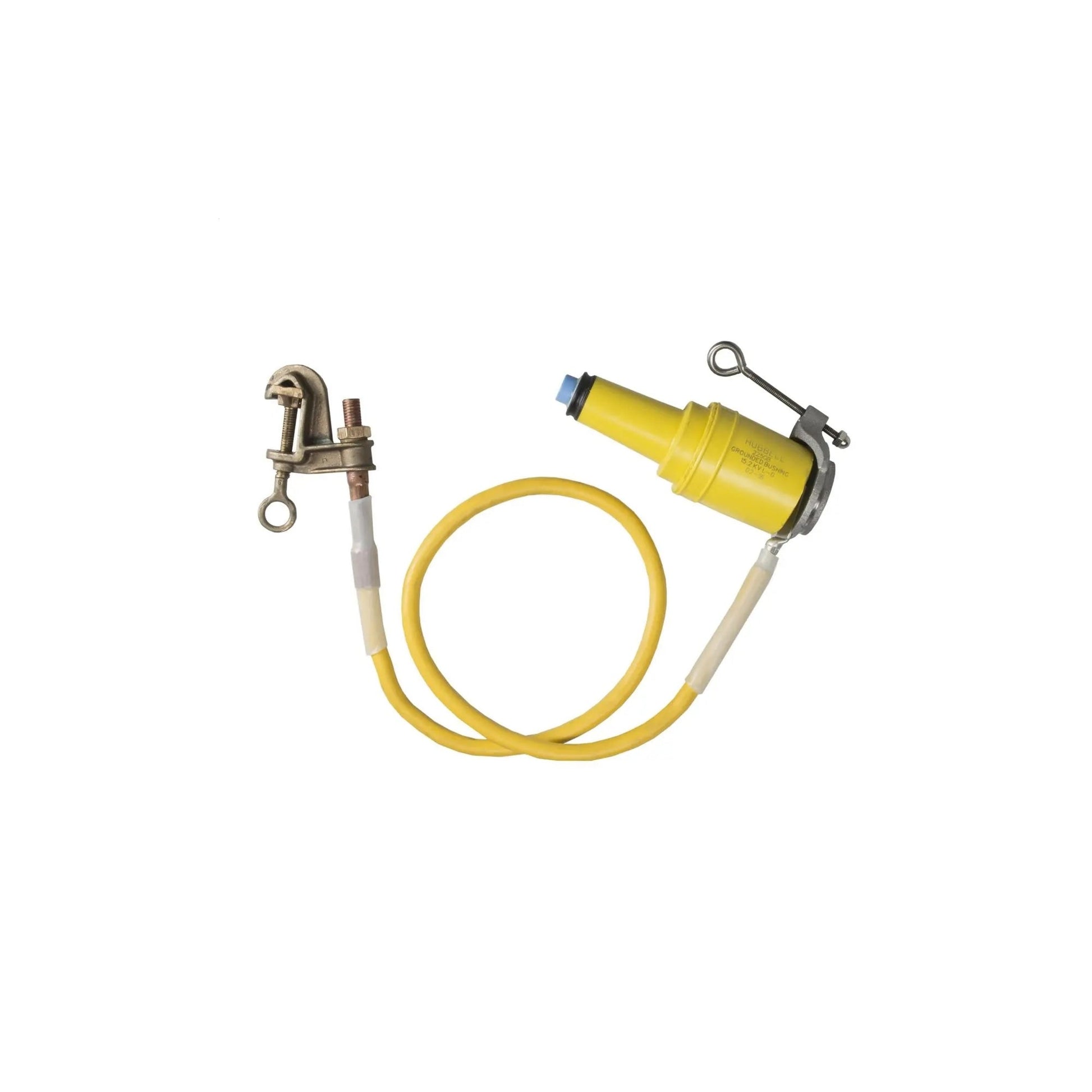

CHANCE - 25 kV & 35 kV Small Interface URD Grounded Parking Bushing Set with 4 ft Yellow 1/0 Grounding Cable, T6003092

CHANCE T6003092 25 kV & 35 kV Small Interface URD Grounded Parking Bushing Set — 4 ft Yellow 1/0 Grounding Cable

The CHANCE T6003092 is a professional-grade grounded parking stand bushing set engineered for single-phase URD switches and transformers rated at 25 kV and 35 kV. This complete assembly provides a safe, code-compliant grounding solution for URD equipment maintenance and installation work, rated for 10 kA fault current over 10 cycles per IEEE 386 standards. The dual-rated 25 & 35 kV small interface loadbreak bushing, 4-foot 1/0 yellow grounding cable, and C-clamp are included for a complete, ready-to-install grounding setup.

What’s Included

• Dual-rated 25 & 35 kV small interface loadbreak bushing for single-phase URD switches and transformers
• 4-foot 1/0 yellow grounding cable with tin-plated copper connectors for corrosion-resistant connections
• C-clamp for secure installation and positioning

Key Features

• Dual-rated 25 kV & 35 kV — compatible with both voltage classes in a single assembly
• 10 kA fault current rating over 10 cycles per IEEE 386 standards for reliable performance in demanding electrical environments
• Tin-plated copper connectors provide corrosion-resistant connections between cable and bushing
• 4-foot cable length for flexible positioning on job sites
• Complete assembly — bushing, cable, and C-clamp included for a ready-to-install grounding setup
• Built to CHANCE’s professional utility standards for URD grounding applications

Specifications

• Part Number: T6003092
• Type: Grounded parking stand bushing set
• Voltage Rating: 25 kV & 35 kV (dual-rated, small interface)
• Bushing Type: Loadbreak
• Fault Current Rating: 10 kA / 10 cycles
• Standard: IEEE 386
• Cable: 4 ft, 1/0, yellow
• Connectors: Tin-plated copper
• Includes: C-clamp
• Weight: 8 lbs
• Application: Single-phase URD switch and transformer grounding — maintenance and installation
• Vendor: CHANCE

Ideal Applications

• Grounding single-phase URD switches and transformers rated at 25 kV or 35 kV during maintenance and installation
• Underground distribution equipment grounding requiring IEEE 386-compliant parking bushing sets
• Any URD utility application requiring a complete, rated grounded parking bushing assembly for 25 kV or 35 kV equipment

Part Number: T6003092 | Vendor: CHANCE | Rating: 25 kV & 35 kV | Fault Current: 10 kA / 10 cycles | Standard: IEEE 386 | Weight: 8 lbs
