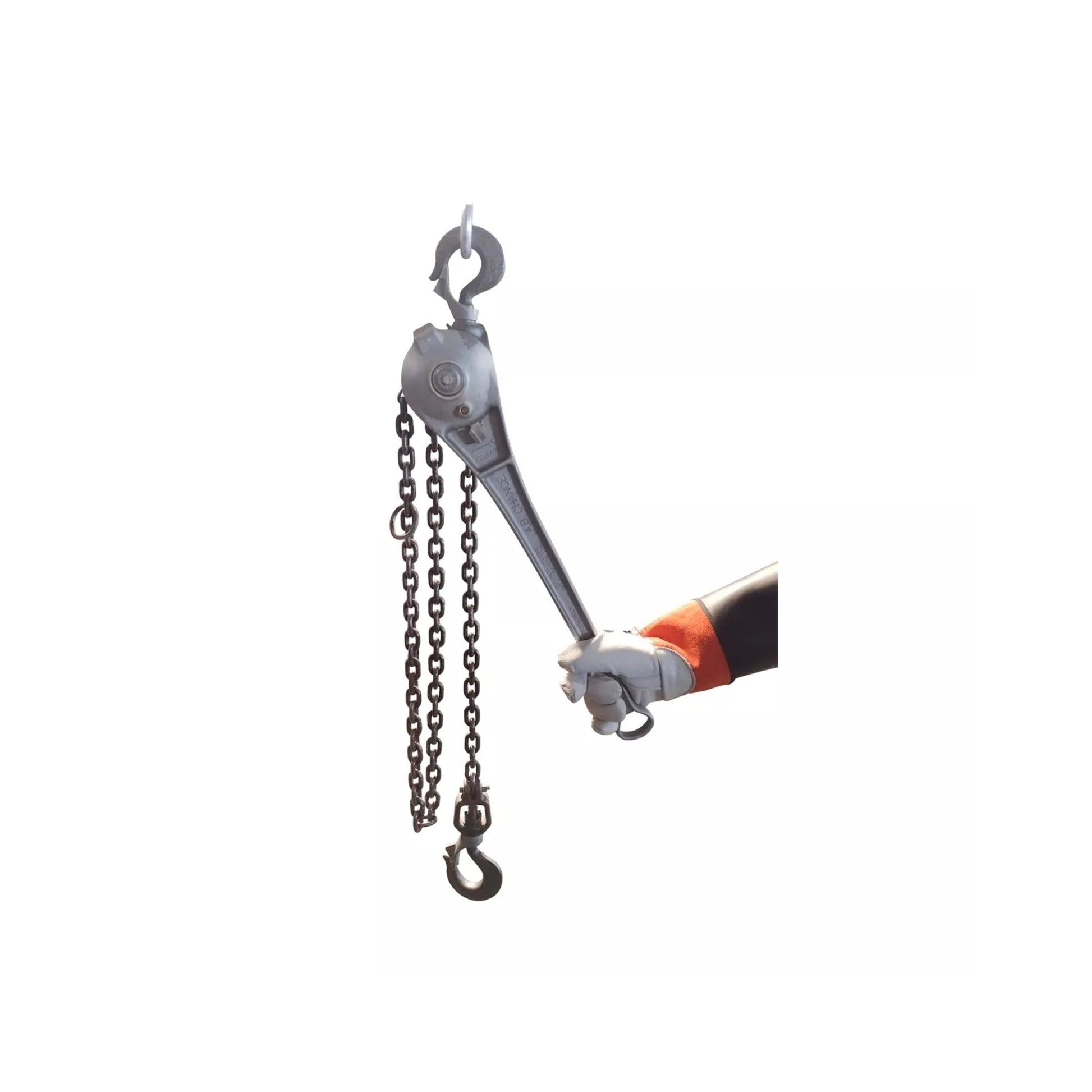

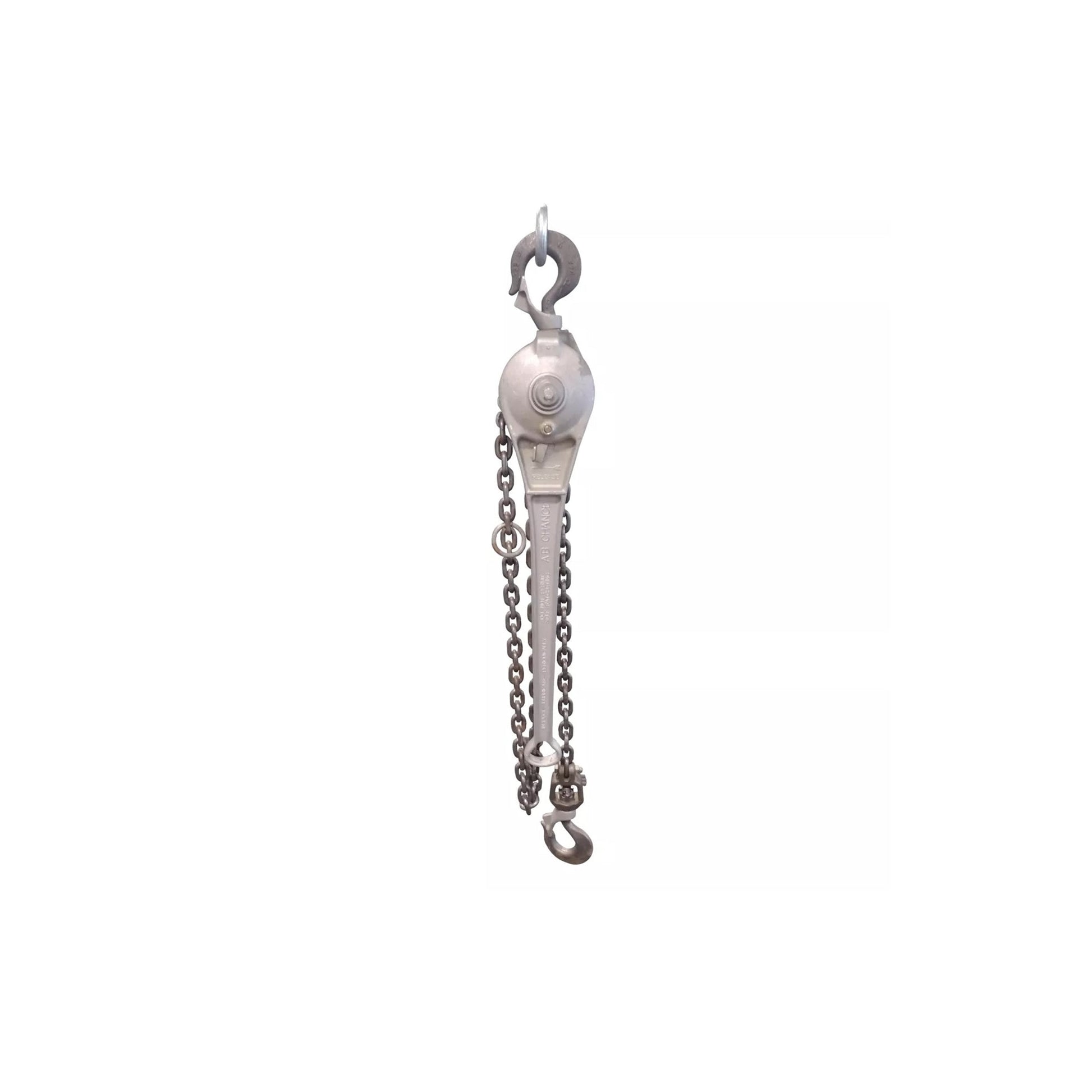

CHANCE - 1 Ton Chain Hoist, Ratchet Link, 5.5-Feet Lift, 3011S

CHANCE 3011S 1-Ton Chain Hoist — Ratchet Link, 5.5-Foot Lift

The CHANCE 3011S 1-Ton Chain Hoist delivers reliable lifting power for transformer work, overhead line rigging, and demanding utility lifting applications. The 20" ergonomic handle requires just 90 lbs. of pull force for controlled lifting, with a 5.5-foot lift capacity and 11" minimum hook-to-hook distance to accommodate various load configurations. Built for long-term field durability with lifetime oil-impregnated bronze sleeve bearings that eliminate routine maintenance.

Key Features

• 1-ton (2,000 lb) capacity for demanding utility transformer and overhead line lifting applications
• 5.5-foot lift capacity with 11" minimum hook-to-hook distance for versatile load configurations
• 20" ergonomic handle requires only 90 lbs. of pull force for controlled, low-effort lifting
• Automatic load-locking controls prevent accidental release under load for safe, secure lifting operations
• Fully enclosed mechanisms protect all internal components from dirt, debris, and field conditions
• Heavy-duty forged steel hooks with 360° swivel and spring-loaded latches for versatile rigging angles and secure load attachment
• Polished alloy steel chain resists wear and ensures smooth operation under load
• Lifetime oil-impregnated bronze sleeve bearings — no routine maintenance required
• Built to CHANCE’s professional utility standards for long-term field durability

Specifications

• Part Number: 3011S
• Type: Chain hoist — ratchet link
• Capacity: 1 ton (2,000 lbs)
• Lift: 5.5 feet
• Min. Hook-to-Hook: 11"
• Handle Length: 20"
• Handle Pull Force: 90 lbs.
• Hooks: Forged steel, 360° swivel, spring-loaded latches
• Chain: Polished alloy steel
• Bearings: Lifetime oil-impregnated bronze sleeve (maintenance-free)
• Mechanism: Fully enclosed
• Load Control: Automatic load-locking
• Application: Transformer work, overhead line rigging, utility lifting
• Vendor: CHANCE

Ideal Applications

• Transformer lifting and setting operations requiring a 1-ton rated chain hoist with controlled, low-effort operation
• Overhead line rigging and maintenance requiring a ratchet link chain hoist with automatic load-locking
• Any utility application requiring a maintenance-free, fully enclosed 1-ton chain hoist for demanding lifting tasks

Part Number: 3011S | Vendor: CHANCE | Capacity: 1 Ton (2,000 lbs) | Lift: 5.5 ft | Pull Force: 90 lbs | Bearings: Lifetime maintenance-free
